Normalized Ar500 Steel Plate Hardness 450-540 20mm Steel Sheet

Normalized Ar500 Steel Plate Hardness 450-540 20mm Steel Sheet

Product Details:

Place of Origin: China
Brand Name: TISCO
Certification: ISO CE AISI ASTM
Model Number: NMB-002

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Price: Elaborate
Packaging Details: Wooden pallets and container
Delivery Time: 5-25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2500 tons/week
Get Best Price Contact Now

Detail Information

Material: Ar400/450/500/600, Nm300/360/400/450/500 Heat Treament: Hot Rolled, Normalized, Tempering, Quenched
Surface Treatment: Clean, Finishing, Blasting And Painting Thickness: 2-300mm(2-100mm Usually Used)
Test: BV-ISO-Ce-SGS-Mtc Special Use: High-strength Steel Plate
Processing Service: Bending, Welding, Decoiling, Cutting, Punching Application: Mining Machinery, Mining Machinery, Environmental Protection
High Light:

Normalized Ar500 Steel Plate

,

Hardness 540 20mm Steel Sheet

,

Ar500 Steel sheet Hardness 450

Product Description

China factory supply ar500 wear resistant steel plate

Introduction of Plate AR500:

Plate AR500 is a hardened steel that is commonly used for targets, armored applications, truck plows and in mining. It is tempered and designed to be abrasion resistant, which makes it ideal for high wear applications.



Plate AR500 chemical composition:

Grade C Si Mn P S Cr Ni Mo B
AR500 0.3 0.7 1.7 0.025 0.015 1 0.7 0.5 0.005



Plate AR500 mechanical property:

Grade Yield Strength Tensile Strength MPa Elongation A Impact Strength Charpy V 20J Hardness Range
AR500 1250 MPa 1450 MPa 8% -30C 450-540



Plate AR500 application:

Highly abrasion-resistant and heat treated to display enhanced toughness, Plate AR500 is one of the most durable and hardest metals on the market. Thanks to its weldability and forming capabilities, Plate AR500 is used in the design and manufacture of everything from protective body armourthrough to the production of mining equipment, ballistic plates, material handling transport solutions and other applications. The metal boasts strong resistance to rub wear, heavy wear and slide wear, making it one of the most user-friendly options available on the market.





Product Name
Kunda Steel NM500 wear resistance abrasion wear resistant steel plate sheet
Standard
AISI,ASTM, EN, BS, GB, DIN, JIS
Thickness
6mm-500mm
Width
0.3m-3m
Length
2m-12m,or as to requirement
Materials Grade
NM360,NM360L,NM400,NM400L,NM400A,NM450,NM450L,NM450A,NM500A
Inspection
ISO,BV,SGS,MTC
Packing
Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Supply Ability
250000 metric tons/Year
MOQ
5 metric ton,sample order accepted
Shipment time
Within 7-10 workdays after receiving deposit or L/C
Payments
T/T,LC





Chemical Content
Steel/Grade
C
Si
Mn
P
S
AL
Cr+Ni+Mo
Nb+V+Ti
NM360/AR360
0.10-0.30
0.20-0.40
1.00-2.00
≤0.015
≤0.003
≥0.20
<0.6




Trace Amount
NM400/AR400
0.10-0.40
0.20-0.40
1.00-2.00
≤0.015
≤0.003
≥0.20
<0.9
NM450/AR450
0.10-0.40
0.20-0.40
1.00-2.00
≤0.015
≤0.003
≥0.20
<1.2
NM500/AR500
0.10-0.40



0.20-0.45
1.00-2.00
≤0.015



≤0.003
≥0.20
<1.5
NM550/AR550
0.10-0.50
0.20-0.45
1.00-1.50
≤0.015
≤0.003
≥0.20
<2.0
NM600/AR600
0.10-0.50
0.20-0.45
1.00-1.50
≤0.015
≤0.003
≥0.20
<2.5





Mechanical property

Grade
Tensile strength
Elongation
Hardness
-20℃ Impact energy
(Mpa)
(%)(min)
(HBW)
AKv/J (min)
NM360
≥1100
12
330-390
24
NM400
≥1200
10
370-430
24
NM450
≥1250
7
420-480
24
NM500


470(min)

NM550


530(min)

NM600


570(min)

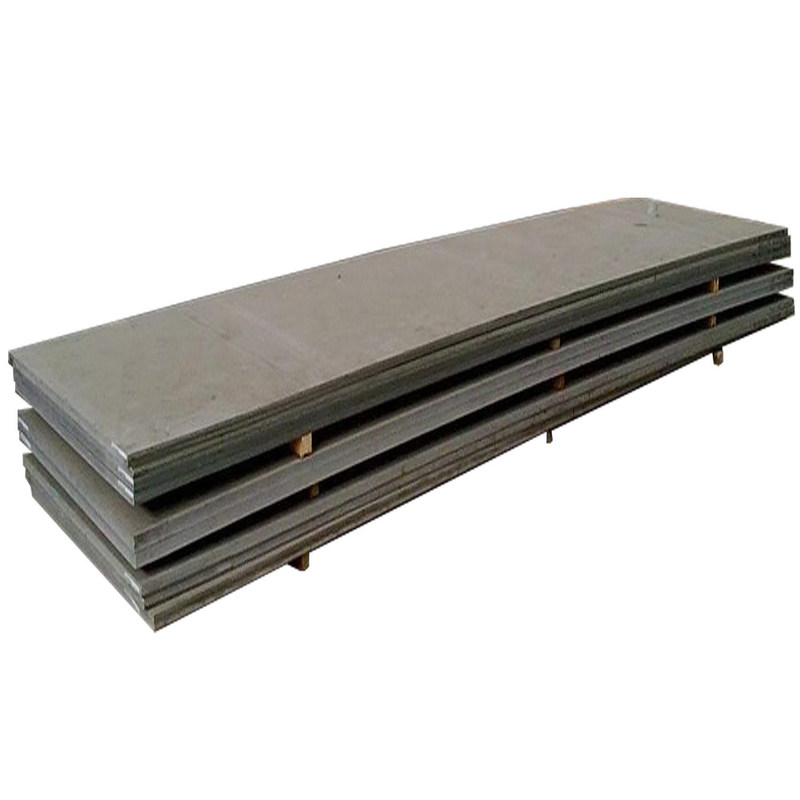

Product Show



Normalized Ar500 Steel Plate Hardness 450-540 20mm Steel Sheet 0Normalized Ar500 Steel Plate Hardness 450-540 20mm Steel Sheet 1

Normalized Ar500 Steel Plate Hardness 450-540 20mm Steel Sheet 2



Manufactory Flow





Normalized Ar500 Steel Plate Hardness 450-540 20mm Steel Sheet 3



Packing

Normalized Ar500 Steel Plate Hardness 450-540 20mm Steel Sheet 4



FAQ

1) Thermal power plant: medium speed coal mill barrel lining plate, fan impeller socket shell, dust collector inlet flue, ash pipe, bucket turbine lining plate, separator connecting pipe, coal crusher lining plate, coal hopper and crusher lining plate, burner burner, coal hopper and hopper lining plate, air preheater support shield, separator guide blade.



2) coal yard: feeding trough and hopper lining, hopper bushing, fan blade, pushing machine bottom plate, cyclone dust collector, coke guide liner, ball mill lining, drill stabilizer, spiral feeder bell and base, kneading machine bucket lining, ring feeder, dump truck bottom plate.



3) Cement plant: chute lining, end bushing, cyclone dust collector, powder separator blade and guide blade, fan blade and lining, recycling bucket lining, screw conveyor bottom plate, pipe assembly, frit cooling plate lining, conveying trough lining.



4) Loading machinery: unloading mill chain plate, hopper lining plate, grab blade plate, automatic dump truck dump plate, dump truck body.



5) Mining machinery: ore, stone crusher lining plate, blade, conveyor lining plate, baffle.



6) Construction machinery: cement pusher tooth plate, concrete mixing floor, mixer lining board, dust collector lining board, brick machine mold board.



7) Construction machinery: loader, bulldozer, excavator bucket plate, side blade plate, bucket bottom plate, blade, rotary digging drill pipe.



8) Metallurgical machinery: iron ore sintering machine, conveying elbow, iron ore sintering machine lining plate, scraping machine lining plate.



9) Wear-resisting steel plate can also be used in sand mill barrel, blade, various goods yard, wharf machinery parts, bearing structural parts, railway wheel structural parts, roller and so on.
