DX52D Z Prime Prepainted Galvanized Steel Coil 0.3mm Thick Rolled Mild Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | TISCO, BAOSTEEL |
| Certification: | ISO, SGS, BV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 ton |
|---|---|
| Price: | to be negotiated |
| Packaging Details: | Standard Sea worthy Packing, Export Sea worthy Packing, Tarpaulin Wrapped Packing, Packing as per customer requirements |
| Delivery Time: | Within 7-15 workdays after receiving deposit or L/C |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Month |
|
Detail Information |
|||
| Name: | 0.3mm Thickness DX52D+Z Prime Prepainted Galvanized Steel Coil | Technique: | Hot Rolled, Prepainted |
|---|---|---|---|
| Grade: | Galvanized Steel Coil | Application: | Decoration, Manufacturing, Industry, Building. |
| Surface Treatment: | Coated | Tolerance: | ±3% |
| Zinc Coating: | 30-275g/m2 | Width: | 600mm-1500mm |
| High Light: | Prime Prepainted Galvanized Steel Coil,DX52D Z Galvanized Steel Coil,0.3mm Thick Rolled Mild Steel |
||
Product Description

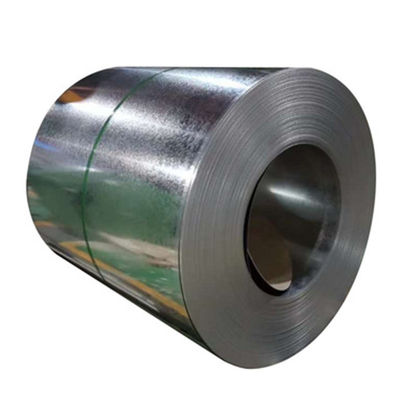

0.3mm Thickness DX52D+Z Prime Prepainted Galvanized Steel Coil
Galvanized steel is mild steel with a coating of zinc. The zinc protects the steel by providing cathodic protection to the exposed steel, so should the surface be damaged the zinc will corrode in preference to the steel. Galvanized steel is one of the most widely used products, used extensively in the building sector, automotive, agricultural and other areas where the steel needs to be protected from corrosion.
Galvanized steel is steel that has gone through a chemical process to keep it from corroding.The steel gets coated in layers of zinc oxide because this protective metal does not get rusty as easily.The coating also gives the steel a more durable ,hard to scratch finish that many people find attractive.For countless outdoor,marine,or industrial applications, galvanized steel is an essential fabrication component.
| Product Specification and Size : | |||||||||||||
| Hot-Dip 55% Al-Zn Coated Steel Coil (GL) | |||||||||||||
| JIS G 3321 2017 | ASTM A792M 2010 | AS 1397 2011 | EN10346 2015 | ||||||||||
| Specifications | SGLCD | SGLCC | SGLC400 | CS | DS | SS | G3 | G1 | G250 G300 G350 G450 G500 G550 | DX51D | DX52D | S220GD | S550GD |
| SGLCDD | 440 570 | Type | Grade | G2 | DX53D | S250GD | |||||||
| A | 230 | S280GD | |||||||||||
| B | 255 | S320GD | |||||||||||
| C | 275 | S350GD | |||||||||||
| FS | 340 | ||||||||||||
| 550 | |||||||||||||
| Thickness of Base Steel (mm) | SGLCC, SGLC340: 0.17~2.02mm; | CS Type A, B, C, Grade 230, 255: 0.17~2.02mm; | G1, G250: 0.17~2.02mm; | DX51D, S220GD, S250GD: 0.17~2.02mm; | |||||||||
| SGLCD1~3: 0.3~1.4mm; | FS Type A, B: 0.295~1.6mm; | G300: 0.28~1.5mm; | DX52D: 0.295~1.6mm; | ||||||||||
| SGLC400: 0.2~1.5mm; | DS: 0.3~1.4mm; | G350: 0.2~2.0mm; | DX53D, 54D: 0.3~1.4mm; | ||||||||||
| SGLC440: 0.2~2.0mm; | SS Grade 275: 0.22~1.5mm; | G450: 0.6~1.5mm; | S280GD: 0.22~1.5mm; | ||||||||||
| SGLC570: 0.17~2.0mm | SS Grade 340: 0.2~2.0mm; | G500, G550: 0.17~2.0mm | S320GD, S350GD: 0.2~2.0mm; | ||||||||||
| SS Grade 550: 0.17~2.0mm | S550GD: 0.17~2.0mm | ||||||||||||
| Coating Mass | AZ70~AZ185 | AZM100~AZM180 | AZ150 | AZ100~AZ185 | |||||||||
| Surface Finish | Regular Spangle | ||||||||||||
| Surface Treatment | Chromating, Oiled, Resin Coated (Anti-Fingerprint), or Green Treatment (Environmentally Friendly Anti-Fingerprint) | ||||||||||||
| Remarks | 1. Tolerance for thickness, width, flatness and so on conforms to individual product specification. | ||||||||||||
| 2. All products with thickness 2.0mm and under can be skin passed. | |||||||||||||
| 3. The coil inside diameter can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm. | |||||||||||||
| 4. Please make inquiries to our Sales & Marketing Division for products with special specifications. | |||||||||||||
| 5. Coating mass beyond the specifications above can be provided by XZH Steel. upon mutual agreement | |||||||||||||
Available Size
| Product Name | Base Type | Thickness (mm) | Width (mm) |
| Hot-dip 55% Al-Zn Coated Steel Coil | Cold-rolled Base | 0.16~2.00 | 700~1550 |
| Hot-dip 5% Al-Zn Coated Steel Coil | Cold-rolled Base | 0.20~2.30 | 700~1550 |
| Hot-rolled Base | 1.30~5.0 | 670~2000(trimmed)/ 2030(untrimmed) |
The table above shows the widest range of product dimensions. For a detailed acceptable order range, please contact Sales & Marketing Division.
Application
water heating machines,
food dehydrators,
exhausted tubes,
automobile mufflers
structural sections.
